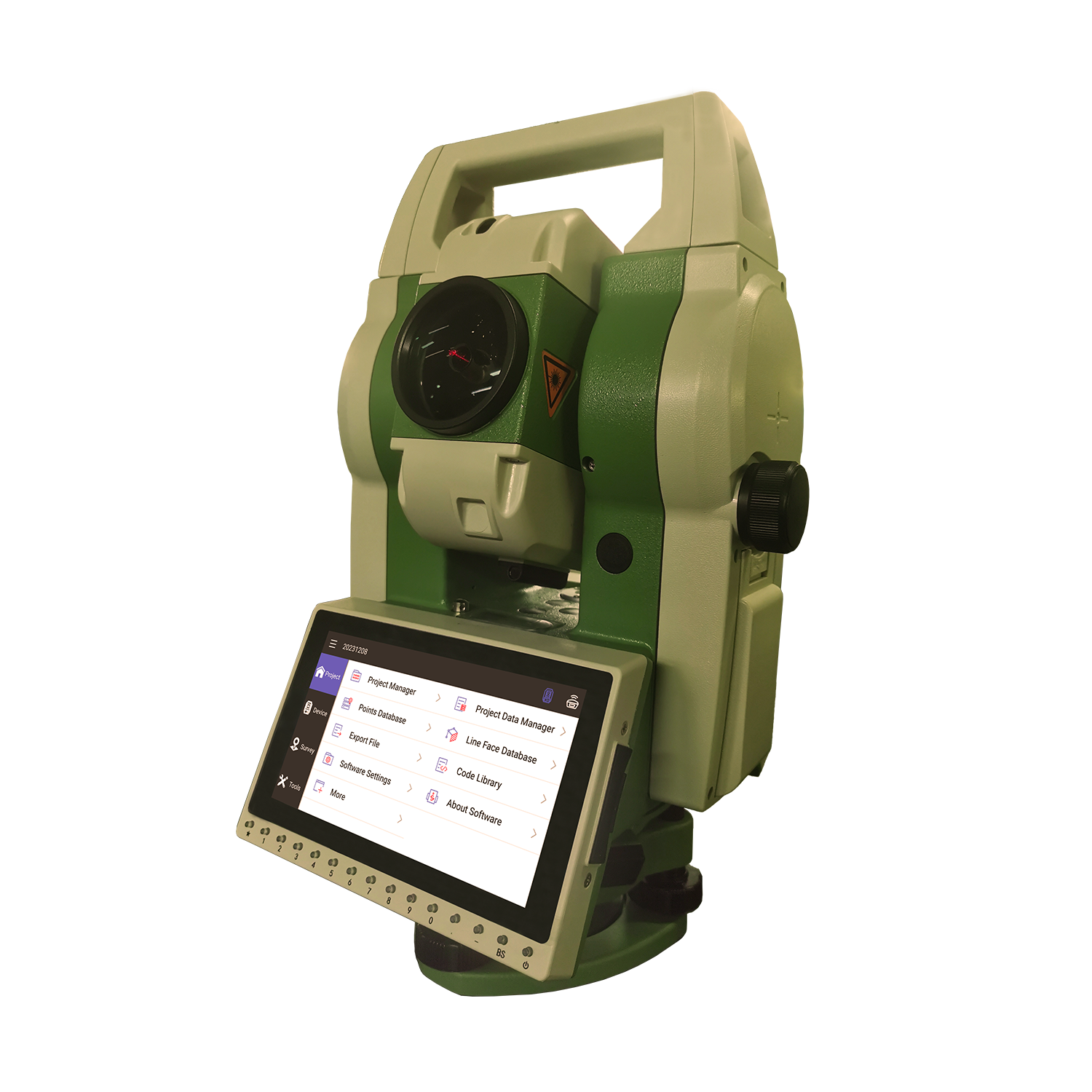

RTS362N Android Total Station
RTS362N Android Total Station

RTS362N Android Total Station

008651265234905

internationalsales@foif.com.cn

8613862022098

RTS362N Android Total Station
RTS362N Android Total Station
description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Features
    •  Smart operating system
      • Android 11, open platform, strong extendibility, APP customizae as per different industries



    •  High performance, easy operation
      • Quad-core processor,ARM Cortex-A55 structure,basic frequency up to 2GHz



    •  Various communication methods
      • Bluetooth, wifi, USB disk, Type-C, 4G network(optional)



    •  Mass memory and storage
      • 4G RAM +32G ROM(8G+128G, extensible), smooth running



    •  Large HD screen, free touch
      • 720P 5.5-inch touchscreen, high resolution 720*1280, strong light proof, clear and distinct



    •  Strong battery life, efficient and smart
      • High capacity lithium battery, smart battery management, supports toggle display of single face and double faces, long working hours



    •  Advanced angle measure system
      • CCD array angle measure system design, efficiently remove system errors



    •  Multifunctional android survey software
      • Brand new android software Surpad, and plentful survey apps, quite facilitate the field work



    •  Easy and quick data transfer
      • Supports csv/txt/dat files quick import and export especially CAD drawing loading and stakeout, OTA upgrade available



  •  Graphical stakeout, as plain as print
    • Supports CAD graphical stakeout in a more efficient way
Specfications

Model

RTS010N

RTS362N

Angle Measure

Accuracy

1”

2”

Method

Absolute encoder

Unit

360°(dms/d)/400gon/6400mil

MAin display

0.1”

Distance Measure

Accuracy

±(1+1X10⁶D)mm                     ±(2+2X10°D)mm

Danoe Beflectorless

2.0~1000m

Reflective sheet

2.0~800m

Standard prism(remote prism mode)

2.0~5000m

Time          Fine/Track

2.0s/0.5s

Unit

m/ft/US ft

Min.display

0.0001m

Telescpe

Magnification/Resolution

30x/3”

Field of view

1°30'

Shortest focusing distance

1.0m

Effective aperture

φ45m Telescope φ50mm EDM

Imaging

Erect

Tilt compensation

Compensation method

Dual-axis

Compensation range

±3.0′

Level vial sensitivity

Plate level vial

30"/2mm

Circular level vial

8'/2mm

Laser plummet

Accuracy

±1.0mm/0.8m~1.5m

Laser spot

≤2.0mm/0.8m~1.5m

Power

Battery

7.4V,5200mAh lithium battery

Working time

≥8h

Other

Memory

4G RAM+32G ROM(8G+128G optional)

CPU

Quad-core 64-bit ARM A55 CPU 2GHZ

Display

5.5-inch touchscreen,resolution 720*1280,double displays or single display

Keyboard

15 keys at the bottom

Communication port

USB HOST port,USB Type C,Bluetooth,WIFI,RS-232(4G module optional)

Backight adjustme/tueim p.tod lu resture senso

Support

H-V movements

Lock drive            Endless drive

Network

Various networks(4G optional)

System update/APP update and release

Cloud support

Third-party software interface/Third-party software

Virtual serial port/BaseMeasure,SurPAD etc.

Software system

ANDROID 11.0

Protection grade

IP55(IEC60529)

Working temp.range

-20℃~+50℃

Storage temp.range

-40℃~+55℃
