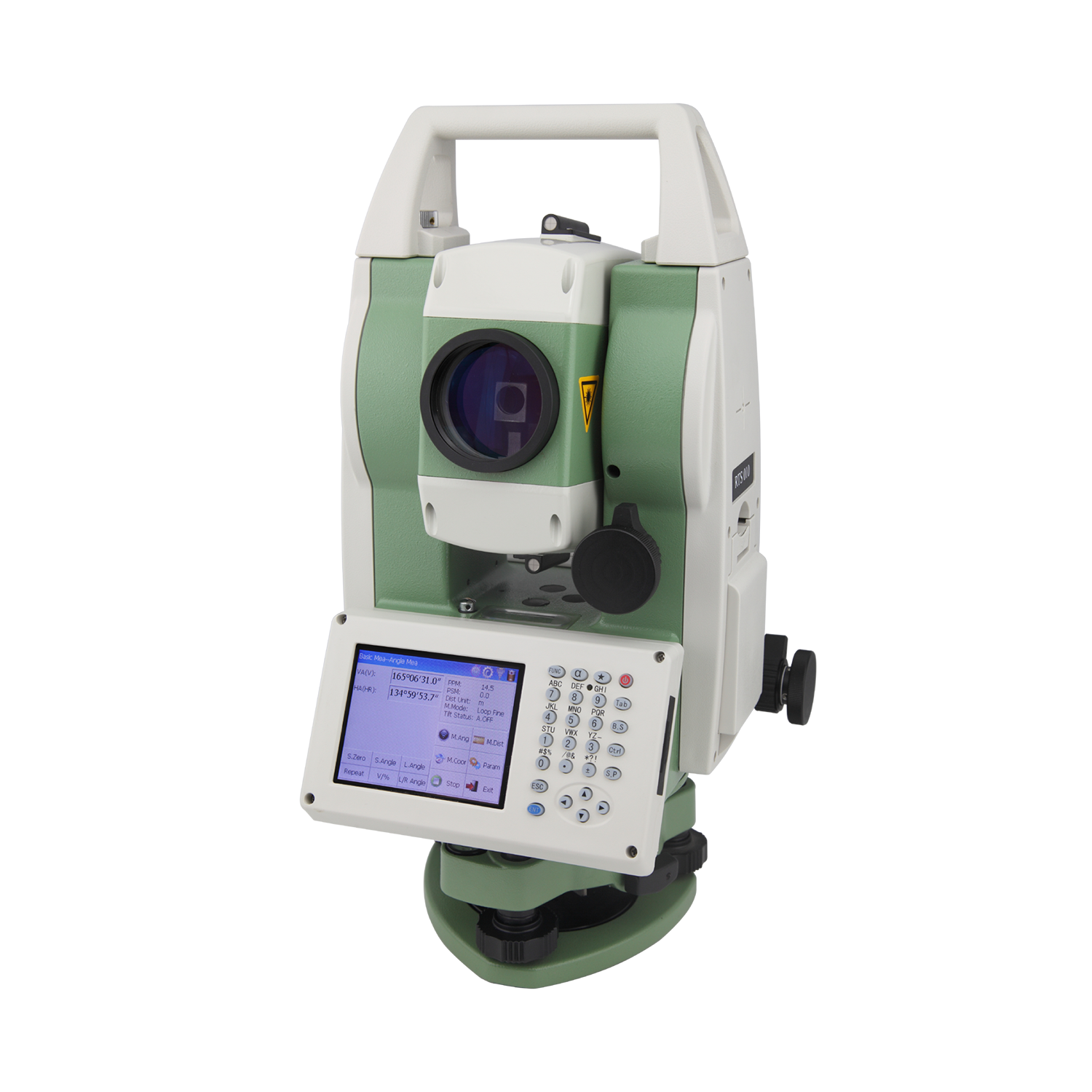

RTS010 Wince Total Station
Angle measurement accuracy: 1 ", distance measurement accuracy: 1mm+1ppm(Prism)
1000m long range reflectorless distance measurement
Ultra - narrow EDM laser beam, can precisely measures high voltage wire, walls, corners, manholes on the road surface, even chain - link fences and tree branches
High accuracy surveying can be achieved in an easy, fast and reliable way
Applied for high precision surveying areas, such as high - speed railway construction, structural monitoring and large - scale 3D measurement
Windows CE 7.0 operating system, onboard software: FOIF Survey, FOIF Fieldgenius.
|
RTS010 |
|
|
Telescope |
|
|
Length/Image |
156mm/Erect |
|
Objective aperture |
φ45mm |
|
Magnification |
30x |
|
Field of view |
1°30' |
|
Shortest focus distance |
1.0m |
|
Angle measurement |
|
|
Reading system |
Absolute encoder |
|
Angle unit |
360°/400gon/6400mil, selectable |
|
Display resolution |
0.5"/0.1"/0.03" (0.15mgon/0.03mgon/0.03mgon) |
|
Accuracy*1 |
1" |
|
Distance measurement |
|
|
Laser class |
|
|
Prism standard mode |
Class 1 |
|
Prism long mode |
Class 2 |
|
Reflective sheet |
Class 2 |
|
Reflectorless standard mode |
Class 2 |
|
Reflectorless long mode |
Class 3R |
|
Measurement range (Good condition)*2 |
|
|
Prism long mode |
1 to 600m |
|
Reflective sheet/RP60 |
1 to 1200m |
|
Reflectorless standard mode*3 |
1 to 1000m |
|
Accuracy |
|
|
Prism standard mode |
1mm+1ppm |
|
Reflective sheet/RP60 |
2mm+2ppm |
|
Reflectorless |
2mm+2ppm (0.1 - 500m); 4mm+2ppm (500 - 1000m) |
|
Typical measuring time |
|
|
Prism standard mode |
1.0s - 5.0s |
|
Prism long mode |
0.7s - 6s |
|
Reflective sheet/RP60 |
>200m: 1s - 5s; <200m: 0.9s |
|
Reflectorless |
0.1 - 500m: 0.7s - 6s; >500m: 3s - 12s |
|
Min. display resolution |
0.0001m/0.001ft/0.001ft (US) |
|
Level sensitivity |
|
|
Plate level vial |
30"/2mm |
|
Circular level vial |
8"/2mm |
|
Compensator |
|
|
Compensation method |
Dual-axis |
|
Working range |
±3' |
|
Laser Plummet (Standard) |
|
|
Accuracy |
±1.0 mm / 1.5m |
|
Laser Class |
Class 2 (Max. output power ≥ 0.7mW) |
|
Laser Spot |
2.5m/1.5m |
|
Laser Wave Length |
635nm |
|
Display |
|
|
3.5" colour TFT LCD (320 x 240 dots) touch screen transflective sunlight readable display |
|
|
Power |
|
|
Battery |
3400mAh Li-ion Rechargeable |
|
Output Voltage |
7.4V DC |
|
Continuous Operation Time |
5 hours (Single distance measurement every 30 seconds) |
|
Charger |
FD6 - LI(100V / 240V ) |
|
Charging Time |
Approx. 4 hours |
|
Application Programs |
|
|
Data collection/Stake out/Resection/REM/MLM/LHM |
|
|
Others |
|
|
CPU |
ARM Cortex A8 |
|
Memory |
4GB internal memory |
|
Sensors |
Built-in temperature and pressure sensors |
|
Keyboard |
Alphanumerical illuminated key board, both sides |
|
Weight (including batteries) |
6.5 kg |
|
Dimensions (WxDxH) |
185x220x360mm |
|
Operating Temperature |
-20°C to +50°C |
|
Interface |
USB host/USB slave/RS - 232C/Bluetooth (Optional) |
|
Water and Dust Protection |
IP54( IEC60529) |
|
Onboard Software |
FOIF Survey, FOIF Fieldgenius |
