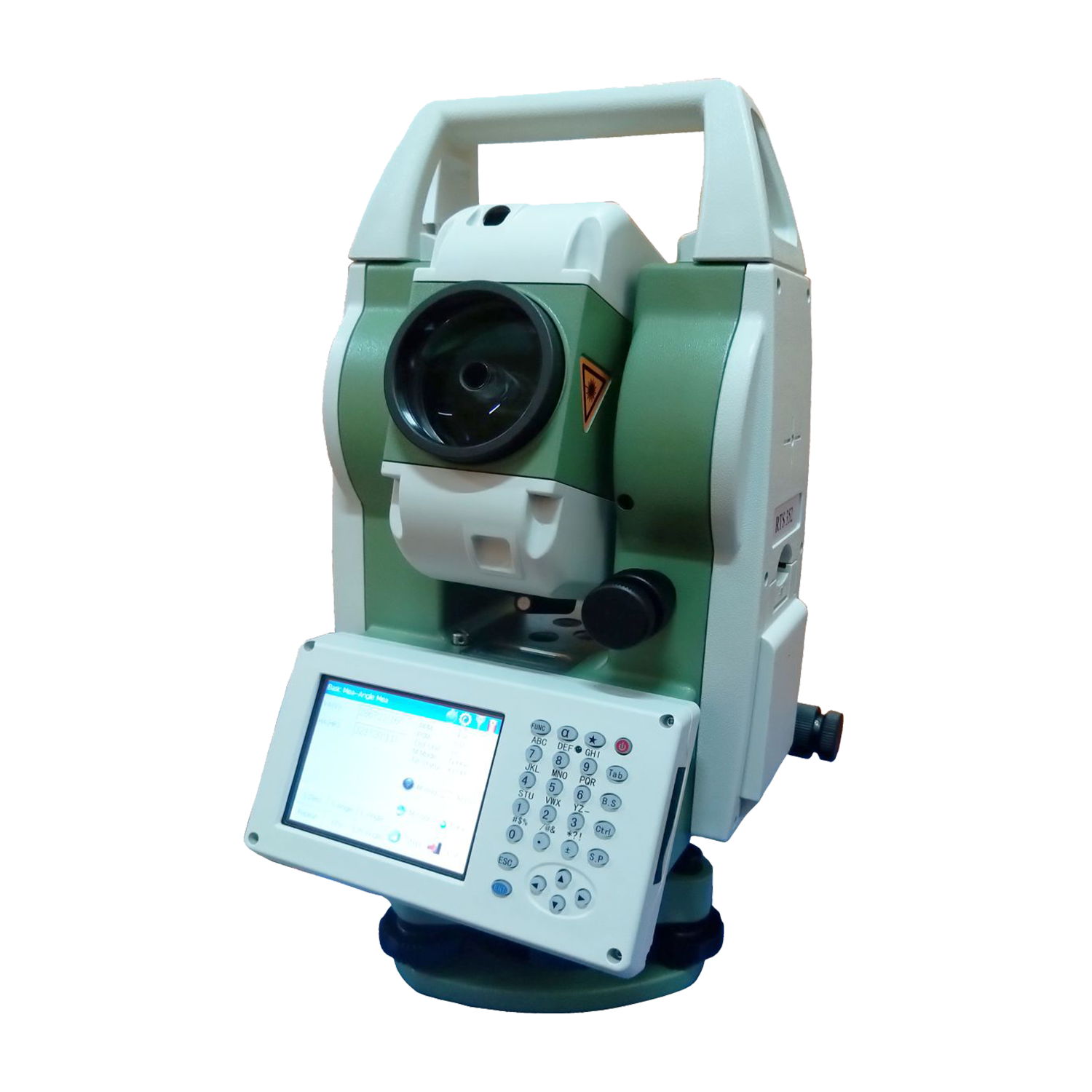

RTS352 Wince Total Station
Compact design with Windows CE 7.0 operating system
3.5" colour TFT LCD (320 x 240 dots) touch screen, transflective sunlight readable display
Professional onboard software: FOIF Fieldgenius,FOIF Survey
Long reflectorless measuring distance reaches to 600m(R600) or 1000m(R1000)
Illuminated keyboard with light sensor, turn on in dark surroundings automatically
Multiple data interfaces,USB host, USB slave, RS-232C or Bluetooth(optional) connections are available
Smart battery managing system, display battery life in real-time
Guide light system(optional) for fast stake out measurement
|
RTS352 |
RTS355 |
|
|
Telescope |
||
|
Length/Image |
156mm/Erect |
|
|
Objective aperture |
Φ45mm |
|
|
Magnification |
30x |
|
|
Field of view |
1°30' |
|
|
Shortest focus distance |
1.0m |
|
|
Angle measurement |
||
|
Reading system |
Absolute encoder |
|
|
Angle unit |
360°/400gon/6400mil, selectable |
|
|
Display resolution |
0.5″/1″/0.1″(0.15mgon/0.3mgon/0.03mgon) |
|
|
Accuracy |
2″ |
5″ |
|
Distance measurement |
||
|
Measurement resolution (m/inch selectable) |
0.1m/1mm |
|
|
Laser class |
Class 1 |
|
|
Reflectorless/Reflective sheet |
Class 3A |
|
|
Measurement range (Good condition) |
||
|
Reflectorless*2 |
||
|
R600 |
2.0 to 600m |
|
|
R1000 |
2.0 to 1000m |
|
|
Single prism (standard mode/long mode)*3 |
2.0 to 3000m/2.0 - 5000m |
|
|
Accuracy |
||
|
Prism in standard mode |
2mm + 2ppm |
|
|
Reflective sheet/RP60 |
3mm + 2ppm |
|
|
Reflectorless |
||
|
R600 |
2.0 - 150m: 3mm + 2ppm |
|
|
R1000: |
2.0 - 150m: 3mm + 2ppm |
|
|
Measuring time |
Initial: 2s |
|
|
Prism |
typ. 1.0 - 1.5s |
|
|
Reflective sheet/RP60 |
typ. 1.5s |
|
|
Reflectorless |
typ. 1.5 - 5s, max. 20s |
|
|
Level vial sensitivity |
||
|
Plate level vial |
30"/2mm |
|
|
Circular level vial |
8"/2mm |
|
|
Compensator |
Dual-axis compensator |
|
|
Working range |
3' |
|
|
Setting accuracy |
1' |
|
|
Laser Plummet (Standard) |
||
|
Accuracy |
±1.0 mm/1.5 m |
|
|
Laser class |
Class 2/IEC60825-1 |
|
|
Laser brightness |
Adjustable |
|
|
Laser wave length |
635nm |
|
|
Display |
||
|
3.5" colour TFT LCD(320x240 dots) touch screen Transflective sunlight readable display |
||
|
Power |
||
|
Battery |
3400mAh Li-ion Rechargeable |
|
|
Output voltage |
7.4V DC |
|
|
Continuous operation time |
5 hours |
|
|
Charger |
FD6-LI(100V/240V) |
|
|
Charging time(at +20°C) |
Approx. 4 hours |
|
|
Application programs |
||
|
Data collection/Stake out/Resection/REM/MLM/LHM /Offset measurement/Traverse surveying |
||
|
Others |
|
|
|
CPU |
ARM Cortex A8 |
|
|
Memory |
4GB internal memory |
|
|
Sensors |
Built-in temperature and pressure sensors |
|
|
Keyboard |
Alphanumerical key board, both sides |
|
|
Weight(including batteries) |
6.0 kg |
|
|
Dimensions(WxDxH) |
185x220x360mm |
|
|
Operating temperature |
-20℃ to +50℃ |
|
|
Interface |
USB host/USB slave/RS-232C/Bluetooth(Optional) |
|
|
Water and dust protection |
IP54(IEC60529) |
|
