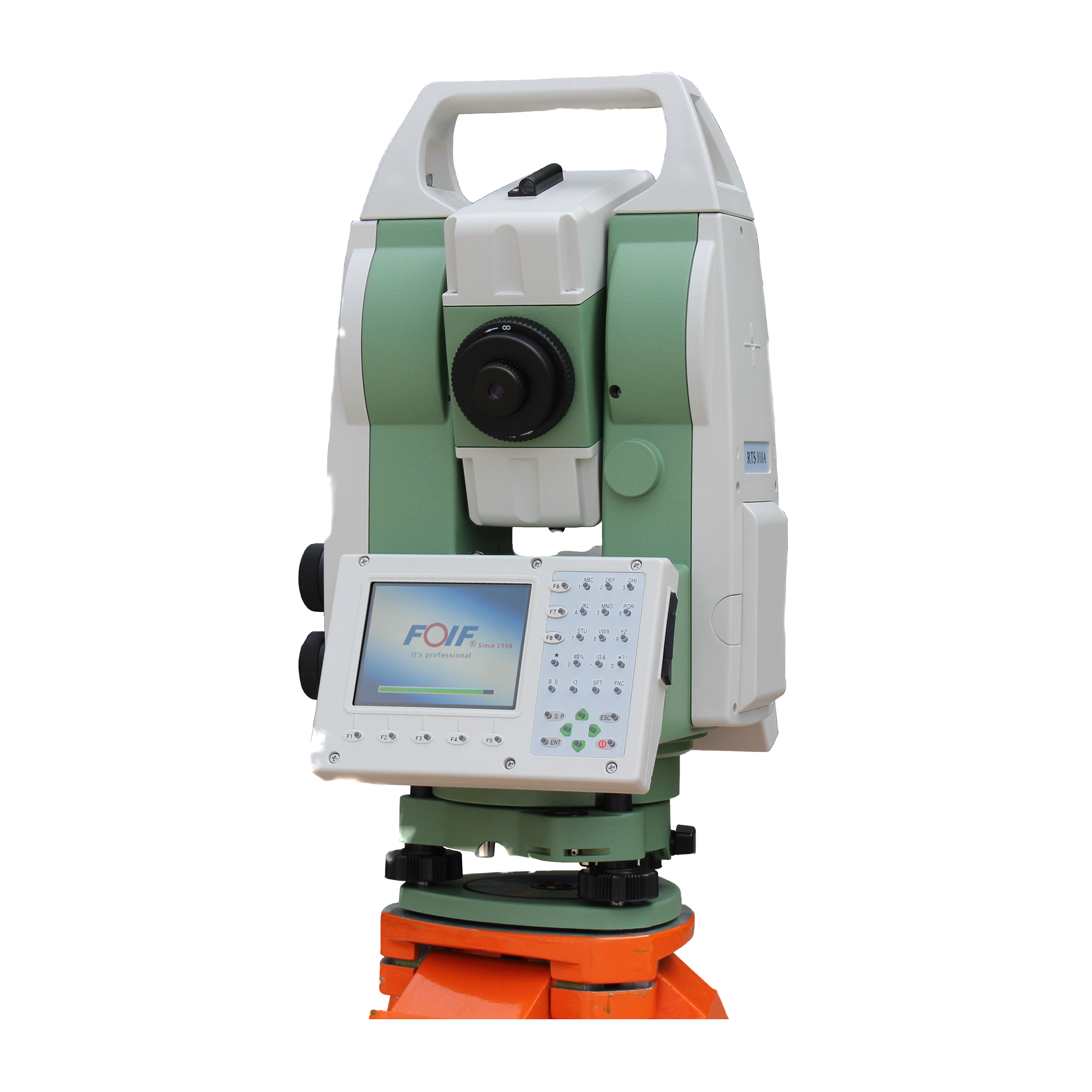

RTS010A Robotic Total Station

RTS010A Robotic Total Station

008651265234905

internationalsales@foif.com.cn

8613862022098

RTS010A Robotic Total Station
RTS010A Robotic Total Station
RTS010A Robotic Total Station
RTS005A-010A brochure_En.pdf
description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Features

 Angle measurement accuracy: 0.5"/1", distance measurement accuracy(Prism): ±（1+1×10-6D)mm



 1000m long range reflectorless distance measurement

 Vertical shafting: dense ball bearing and four detectors design; Horizantal shafting: unitary and four detectors design



 Adopts up-to-date automatic target recognition and positioning technology



 Supports SDK and external control protocol for software developing



 Supports one man survey with FOIF Inspire android app, and bluetooth can stably communicate above 200 meters away



 Also applied for high precision surveying areas, such as rail traffic monitoring, dam monitoring

Technical Data
RTS005A RTS010A
Telescope
Resolution/image 3′ / Erect 3′ / Erect
Objective aperture Φ45, EDMΦ50 Φ45, EDMΦ50
Magnification 30x 30x
Field of view 1°20′ 1°20′
Shortest focus distance 1.5m 1.5m
Angle measurement
Reading system Absolute encoder(four detectors) Absolute encoder(four detectors)
Angle unit 360°(dms/d)/400gon/6400mil 360°(dms/d)/400gon/6400mil
Minimum display resolution 0.1″ 0.1″
Shafting design Dense ball bearing for vertical shafting,
unitary design for horizontal shafting		 Dense ball bearing for vertical shafting,
unitary design for horizontal shafting
Accuracy¹ 0.5″ 1″
Distance measurement
Accuracy
Prism in standard mode ±(1 + 1×10⁻⁶D)mm ±(1 + 1×10⁻⁶D)mm
Reflective sheet/RP60 ±(2 + 2×10⁻⁶D)mm ±(2 + 2×10⁻⁶D)mm
Reflectorless ±(3 + 2×10⁻⁶D)mm/(2 - 150)m
±(5 + 3×10⁻⁶D)mm/(150 - 300)m
±(10 + 5×10⁻⁶D)mm/(300 - 500)m
±(10 + 10×10⁻⁶D)mm/(500 - 1000)m		 ±(3 + 2×10⁻⁶D)mm/(2 - 150)m
±(5 + 3×10⁻⁶D)mm/(150 - 300)m
±(10 + 5×10⁻⁶D)mm/(300 - 500)m
±(10 + 10×10⁻⁶D)mm/(500 - 1000)m
Measurement range²
Prism(standard mode/long mode) 2 to 3000m / 2 to 5000m 2 to 3000m / 2 to 5000m
Reflective sheet/RP60 1 to 800m 1 to 800m
Reflectorless 1 to 1000m 1 to 1000m
Measuring time³
Fine mode ≤1.0s(initial 1.5s) ≤1.0s(initial 1.5s)
Track mode ≤0.2s(initial 1.0s) ≤0.2s(initial 1.0s)
Unit selection m/ft/US ft m/ft/US ft
Minimum display 0.0001 / 0.001m(fine, fast modes); 0.01m(track mode) 0.0001 / 0.001m(fine, fast modes); 0.01m(track mode)
ATR system
Working range(target is in the field of view) 5 - 1000m⁴ 5 - 1000m⁴
Positioning accuracy⁵ ±1.5mm@≤200m, ±1.5′ >200m ±1.5mm@≤200m, ±1.5′ >200m
Positioning time(in field of view of telescope) 0.5 to 2s 0.5 to 2s
Track speed⁵ 7°/s 7°/s
Level vial sensitivity
Plate level vial 30″/2mm 30″/2mm
Circular level vial 8′/2mm 8′/2mm



RTS010A
Compensator
Working range ≥±3′
Compensating method Dual - axis
Laser plummet
Accuracy ±1.0mm/0.8 - 1.5m
Light spot ≤2.0mm/0.8 - 1.5m
Maximum output power 0.7 - 1.0mW
Laser wave length 635nm
Endless drive
Motor drive H&V
Max. rotational angular speed 35°/s
Min. value for micro - rotation control in low speed 1″
Servo positioning accuracy(standard deviation) 3″
Display
Display 3.5″ colour TFT LCD (320 x 240 dots), touch screen, transmissive sunlight readable display
Power
Battery 5800mAh Li - ion Rechargeable
Output voltage 7.4V DC
Operation time 5 - 8 hours
Charger 110/220V, charging about 4 hours
Application programs Data collection/Stake out/Resection/REM/MLM/LHM/Offset measurement/Traverse surveying/Auto aim and lock
Others
Memory Built - in 4GB/USB Host
Sensor Built - in temperature and pressure sensor
Keyboard Both - side alphanumerical illuminated keyboard
Operating system WinCE 7.0, SDK supported
Guide light Optional
Operating temperature -20°C to +50°C
Storage temperature -40°C to +60°C
Interface mini USB/RS - 232C/Bluetooth(optional)
Water and dust protection IP55(IEC60529)
Software One man survey with FOIF Inspire app
Data collector P9IV, fully rugged PDA(Optional)
Dampproof 95%, no condensing
