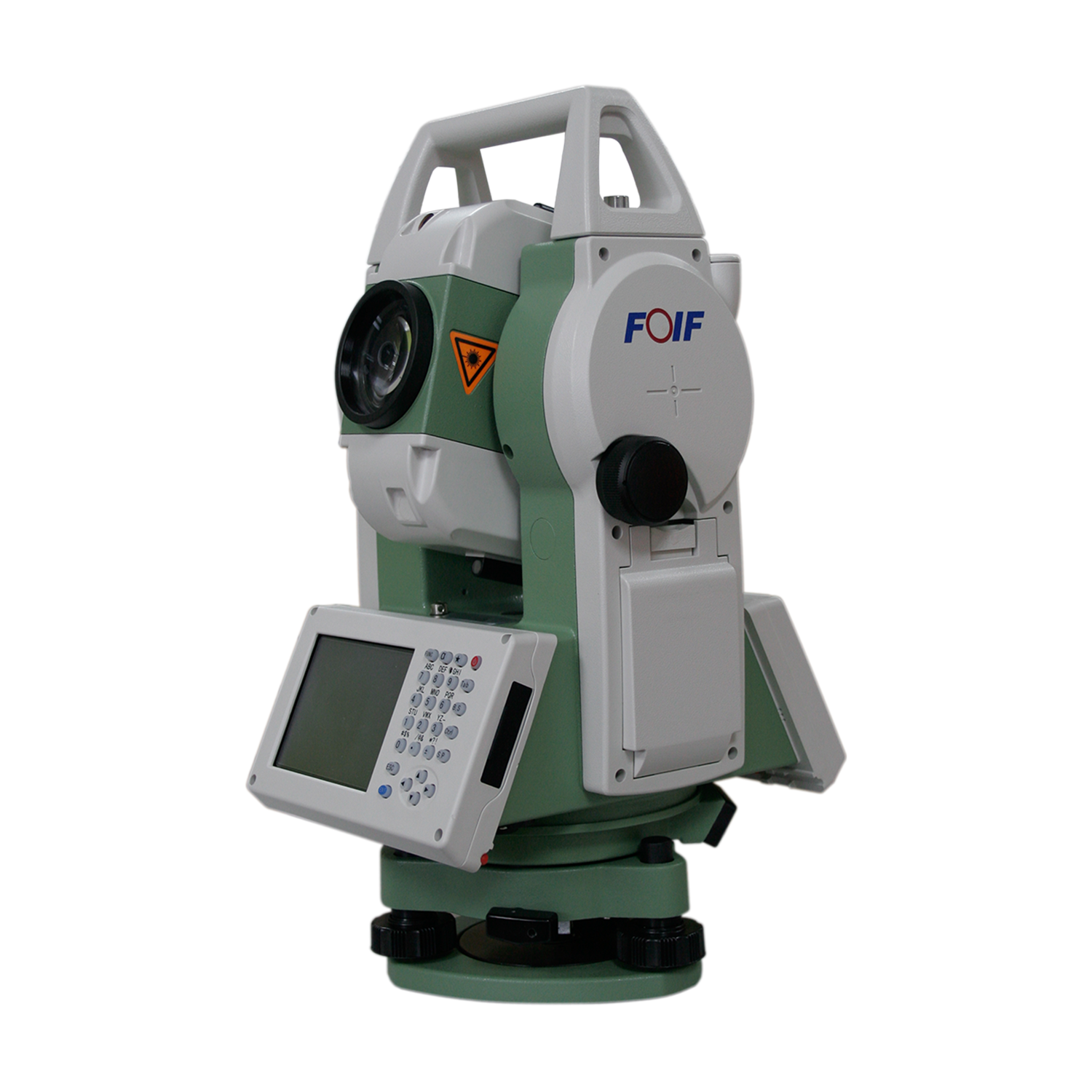

RTS362 Wince Total Station
Easy one-touch operation, simply push the trigger key
Compact design with Windows CE 7.0 operating system
Endless drives, collimate target faster with two hands operation
Smart battery managing system, display battery life in real-time
Professional onboard software: FOIF Survey or FOIF FieldGenius(optional)
Illuminated keyboard with light sensor, turn on in dark surroundings automatically
Long reflectorless measuring distance reaches to 600m(R600) or 1000m(R1000)
3.5" colour TFT LCD (320 x 240 dots) touch screen, transflective sunlight readable display
|
RTS362 |
RTS365 |
|
|
Telescope |
||
|
Length/Image |
156mm/Erect |
|
|
Objective aperture |
Φ45mm |
|
|
Magnification |
30x |
|
|
Field of view |
1°30' |
|
|
Shortest focus distance |
1.0m |
|
|
Angle measurement |
||
|
Reading system |
Absolute encoder |
|
|
Angle unit |
360°/400gon/6400mil, selectable |
|
|
Display resolution |
0.5″/1″/0.1″(0.15mgon/0.3mgon/0.03mgon) |
|
|
Accuracy |
2″ |
5″ |
|
Distance measurement |
||
|
Measurement resolution (m/inch selectable) |
0.1m/1mm |
|
|
Laser class |
Class 1 |
|
|
Reflectorless/Reflective sheet |
Class 3A |
|
|
Measurement range (Good condition) |
||
|
Reflectorless*2 |
||
|
R600 |
2.0 to 600m |
|
|
R1000 |
2.0 to 1000m |
|
|
Single prism (standard mode/long mode)*3 |
2.0 to 3000m/2.0 - 5000m |
|
|
Accuracy |
||
|
Prism in standard mode |
2mm + 2ppm |
|
|
Reflective sheet/RP60 |
3mm + 2ppm |
|
|
Reflectorless |
||
|
R600 |
2.0 - 150m: 3mm + 2ppm |
|
|
R1000: |
2.0 - 150m: 3mm + 2ppm |
|
|
Measuring time |
Initial: 2s |
|
|
Prism |
typ. 1.0 - 1.5s |
|
|
Reflective sheet/RP60 |
typ. 1.5s |
|
|
Reflectorless |
typ. 1.5 - 5s, max. 20s |
|
|
Level vial sensitivity |
||
|
Plate level vial |
30"/2mm |
|
|
Circular level vial |
8"/2mm |
|
|
Compensator |
Dual-axis compensator |
|
|
Working range |
3' |
|
|
Setting accuracy |
1' |
|
|
Laser Plummet (Standard) |
||
|
Accuracy |
±1 mm/1.5 m |
|
|
Laser class |
Class 2/IEC60825-1 |
|
|
Laser brightness |
Adjustable |
|
|
Laser wave length |
635nm |
|
|
Endless drive |
H&V |
|
|
Display |
||
|
3.5" colour TFT LCD(320x240 dots) touch screen Transflective sunlight readable display |
||
|
Power |
||
|
Battery |
3400mAh Li-ion Rechargeable |
|
|
Output voltage |
7.4V DC |
|
|
Continuous operation time |
5 hours |
|
|
Charger |
FD6-LI(100V/240V) |
|
|
Charging time(at +20°C) |
Approx. 4 hours |
|
|
Application programs |
||
|
Data collection/Stake out/Resection/REM/MLM/LHM /Offset measurement/Traverse surveying |
||
|
Others |
|
|
|
CPU |
ARM Cortex A8 |
|
|
Memory |
4GB internal memory |
|
|
Sensors |
Built-in temperature and pressure sensors |
|
|
Keyboard |
Alphanumerical key board, both sides |
|
|
Weight(including batteries) |
6.0 kg |
|
|
Interface |
USB/RS-232C/Bluetooth (Optional) |
|
|
Water and dust protection |
IP54(IEC60529) |
|
|
Guide light |
optional |
|
