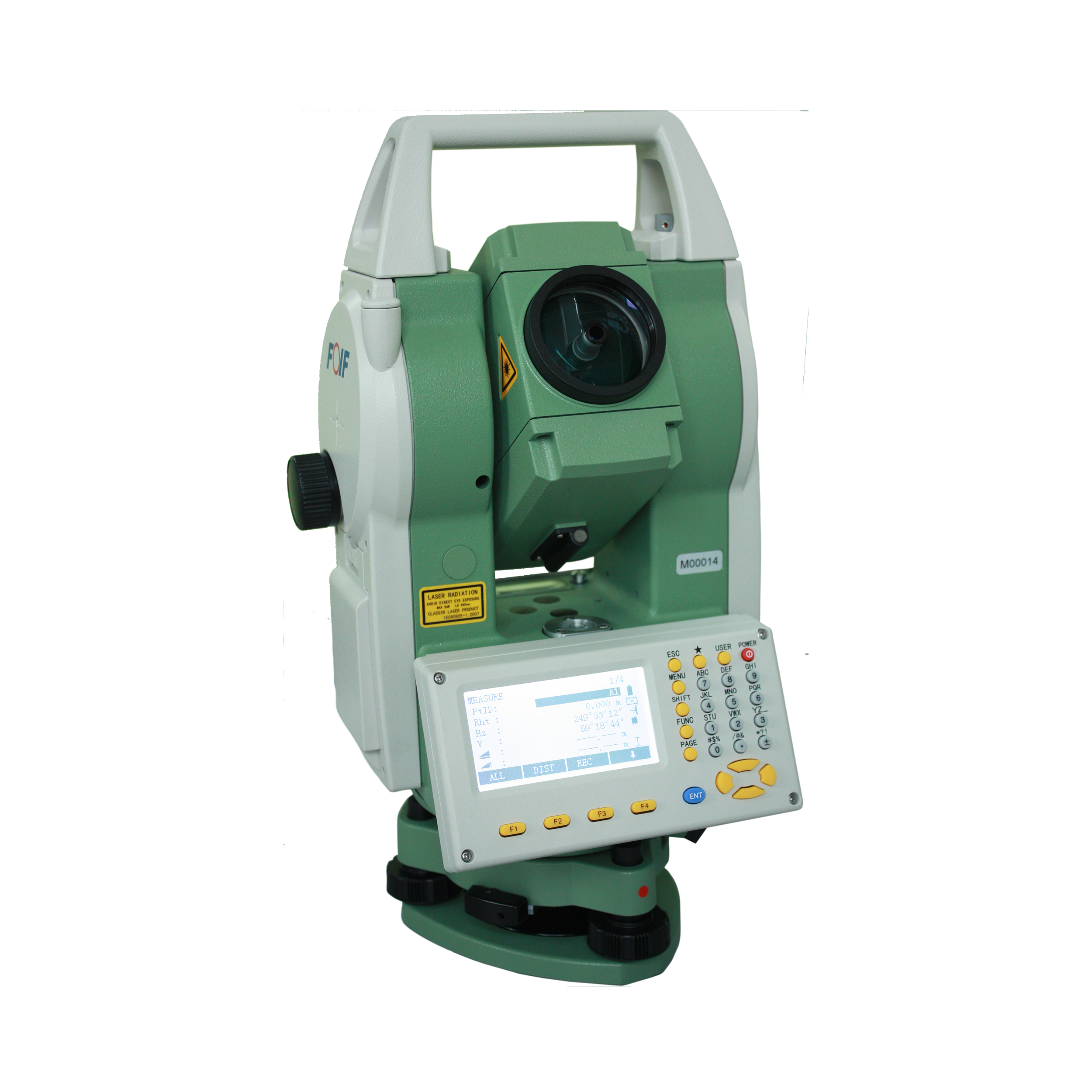

RTS332 Total Station
Easy one-touch operation, simply push the trigger key
Endless drives, collimate the target faster with two hands operation
Reflectorless measuring distance reaches to 600m(R600) or 1000m(R1000)
Multiple data interfaces, mini-USB, RS-232C or SD card data transfer are available
Bluetooth cable-free connection offers solution of semi-automatic data collection(optional)
Onboard software and application programs simplify and speed up work in the field
Guide light system for fast stake out measurement(optional)
|
RTS332 |
RTS335 |
|
|
Telescope |
||
|
Length/Image |
Erect |
|
|
Objective aperture |
Φ45mm |
|
|
Magnification/Resolution |
30x |
|
|
Field of view |
1°30' |
|
|
Shortest focus distance |
1.0m |
|
|
Angle measurement |
||
|
Reading system |
Absolute encoder |
|
|
Angle unit |
360°/400gon/6400mil, selectable |
|
|
Display resolution |
1"/5"/10"(0.3/1.5/3mgon) |
|
|
Accuracy |
2″ |
5″ |
|
Distance measurement (R600) |
||
|
Laser class(IEC60825-1) |
||
|
Relfectorless |
Class 3A(3R) |
|
|
Laser class |
Class 3A(3R) |
|
|
Reflectorless/Reflective sheet |
Class 1 |
|
|
Measurement range |
||
|
Reflectorless*2 |
||
|
R600 |
2.0 to 600m |
|
|
R1000 |
2.0 to 1000m |
|
|
Single prism (standard mode/long mode)*3 |
2.0 to 3000m/2.0 - 5000m |
|
|
Accuracy |
||
|
Prism in standard mode |
2mm + 2ppm |
|
|
Reflective sheet/RP60 |
3mm + 2ppm |
|
|
Reflectorless |
||
|
R600 |
2.0 - 150m: 3mm + 2ppm |
|
|
R1000 |
2.0 - 150m: 3mm + 2ppm |
|
|
Measuring time |
||
|
Fine |
1.0s(initial 2.0s) |
|
|
Fast |
0.6s(initial 1.5s) |
|
|
Tracking |
0.4s(initial 1.2s) |
|
|
Level vial sensitivity |
||
|
Plate level vial |
30"/2mm |
|
|
Circular level vial |
8"/2mm |
|
|
Compensator |
Dual-axis compensator |
|
|
Working range |
±3' |
|
|
Compensation method |
Dual-axis |
|
|
Laser Plummet (Standard)*4 |
||
|
Accuracy |
±1.0 mm/1.5 m |
|
|
Laser class |
Class 2/IEC60825-1 |
|
|
Laser brightness |
Adjustable |
|
|
Laser wave length |
635nm |
|
|
H&V drive Endless drives |
||
|
Display Large LCD (240×128dots) |
||
|
Power |
||
|
Battery |
3400mAh Li-ion Rechargeable |
|
|
Output voltage |
7.4V DC |
|
|
Continuous operation time |
Approx. 25hours |
|
|
Charger |
FD6-LI(100V/240V) |
|
|
Charging time(at +20°C) |
Approx. 4 hours |
|
|
Application programs |
||
|
Surveying/Stake Out/Free Station/COGO/Tie Distance Area & Volume/Remote Height/Reference Line-Arc/ Construction/Lead Measure/2D-Road |
||
|
Others |
|
|
|
CPU |
32Bit |
|
|
Memory |
4GB internal memory, SD card extendable(max.16G) |
|
|
Sensors |
Built-in temperature and pressure sensors |
|
|
Keyboard |
Alphanumerical key board, both sides |
|
|
Guide light system |
Factory optional |
|
|
Weight(including batteries) |
6.5kg |
|
|
Operating temperature |
-20℃ to +50℃ |
|
|
Reticle illumination |
Yes(on/off) |
|
|
Interface |
USB/RS-232C/Bluetooth(Optional) |
|
|
Water and dust protection |
IP55(IEC60529) |
|
