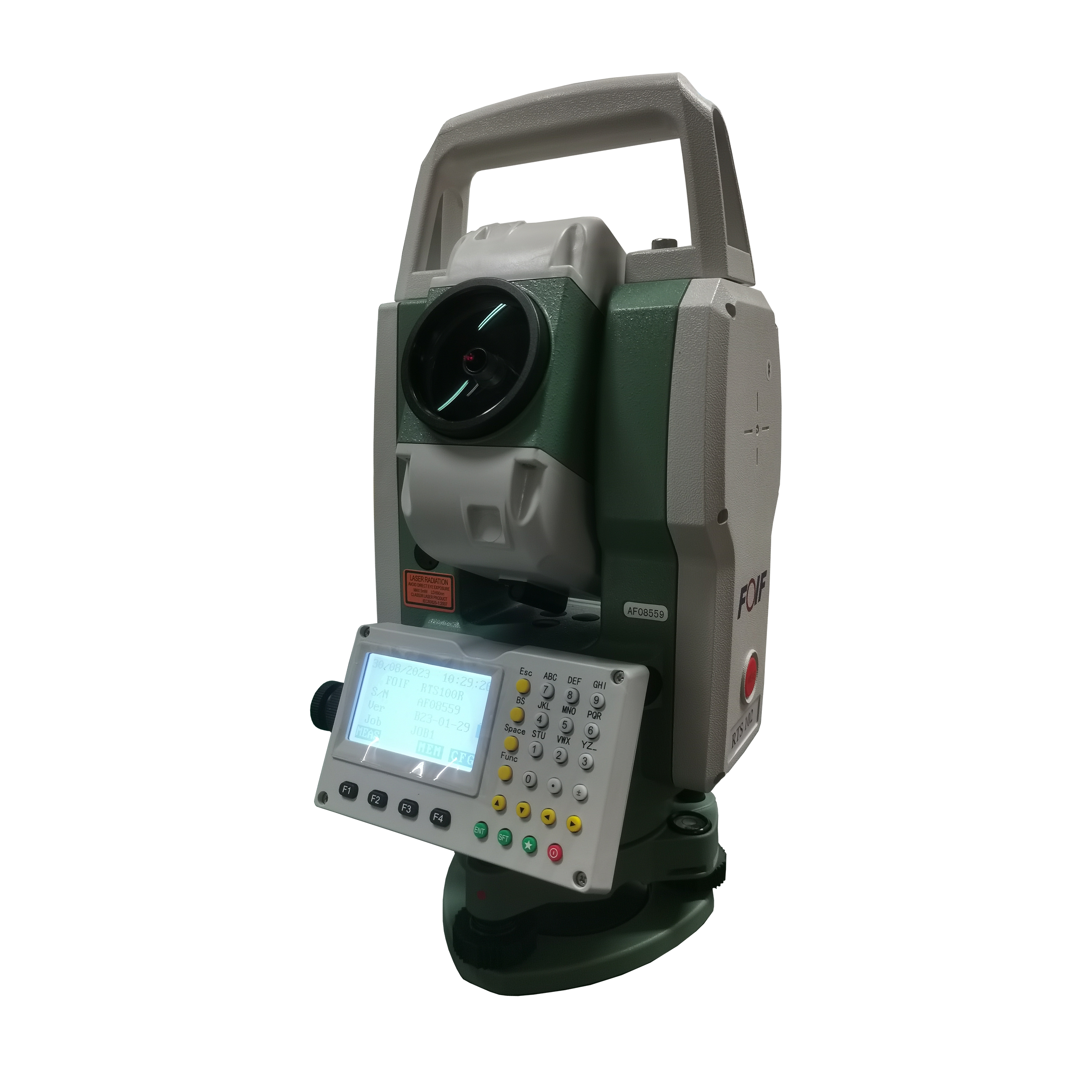

RTS102 Total Station
Brand new design with trigger key added
Reflectorless measuring distance:600m(R600)/1000m(R1000)
Bluetooth cable-free connection(standard)
120000 points and 40 jobs can be saved
Alphanumeric keyboard
IP55 environmental protection
Can be operated with a data collector, FOIF FieldGenius or other third party software is available
|
RTS102 |
||
|
Telescope |
||
|
Length/Image |
Erect |
|
|
Objective aperture |
Φ45mm |
|
|
Magnification/Resolution |
30x |
|
|
Field of view |
1°30' |
|
|
Shortest focus distance |
1.0m |
|
|
Angle measurement |
||
|
Reading system |
Absolute encoder |
|
|
Angle unit |
360°/400gon/6400mil, selectable |
|
|
Display resolution |
1"/5"/10"(0.3/1.5/3mgon) |
|
|
Accuracy |
2″ |
|
|
Distance measurement (R600) |
||
|
Laser class(IEC60825-1) |
||
|
Relfectorless |
Class 3A(3R) |
|
|
Laser class |
Class 3A(3R) |
|
|
Reflectorless/Reflective sheet |
Class 1 |
|
|
Measurement range |
||
|
Reflectorless*2 |
||
|
R600 |
2.0 to 600m |
|
|
R1000 |
2.0 to 1000m |
|
|
Single prism (standard mode/long mode)*3 |
2.0 to 3000m/2.0 - 5000m |
|
|
Accuracy |
||
|
Prism in standard mode |
2mm + 2ppm |
|
|
Reflective sheet/RP60 |
3mm + 2ppm |
|
|
Reflectorless |
||
|
R600 |
2.0 - 150m: 3mm + 2ppm |
|
|
R1000 |
2.0 - 150m: 3mm + 2ppm |
|
|
Measuring time |
||
|
Tracking/Fast/Fine |
0.4 sec/0.6 sec/1.0 sec |
|
|
Display resolution(m/inch selectable) |
0.2mm/1mm |
|
|
Temperature input range |
-40℃ to +60℃(1℃ step) |
|
|
Pressure input range |
500hPa to 1500hPa( 1hPa step) |
|
|
Prism constant correction |
-99.9mm to +99.9mm |
|
|
Compensator Dual-axis |
||
|
Range |
±3' |
|
|
Setting accuracy |
1" |
|
|
Level vial sensitivity |
||
|
Plate level vial |
30"/2mm |
|
|
Circular level vial |
8'/2mm |
|
|
Laser Plummet (Standard)*4 |
||
|
Accuracy |
±1.0 mm/1.5 m |
|
|
Laser class |
Class 2/IEC60825-1 |
|
|
Laser brightness |
Adjustable |
|
|
Laser wave length |
635nm |
|
|
H&V drive Endless drives |
||
|
Display Large LCD (240×128dots) |
||
|
Power |
||
|
Battery |
3400mAh Li-ion Rechargeable |
|
|
Output voltage |
7.4V DC |
|
|
Continuous operation time |
Approx. 24hours(At +20℃) |
|
|
Charger |
FD6-LI(100V/240V) |
|
|
Charging time(at +20°C) |
Approx. 4 hours |
|
|
Application programs |
||
|
Data collection/Stake out/Resection/REM/MLM/ AREA/Z coordinate/OFFset,etc. |
||
|
Others |
|
|
|
Display |
LCD, 6lines X20characters(96 X160 dots) |
|
|
CPU |
32Bit |
|
|
Memory |
120000 points, support SD card(max.16G) |
|
|
Keyboard |
Alphanumerical key board, both sides |
|
|
Weight(including batteries) |
5.1kg |
|
|
Dimensions(W×DxH) |
175x178x340mm |
|
|
Operating temperature |
-20℃ to +50℃ |
|
|
Storage temperature |
-40℃ to +70℃ |
|
|
Interface |
miniUSB/RS-232C/Bluetooth |
|
|
Water and dust protection |
IP55(IEC60529) |
|
|
Data transfer&processing software FOIF Geomatics Office(FGO) |
||
