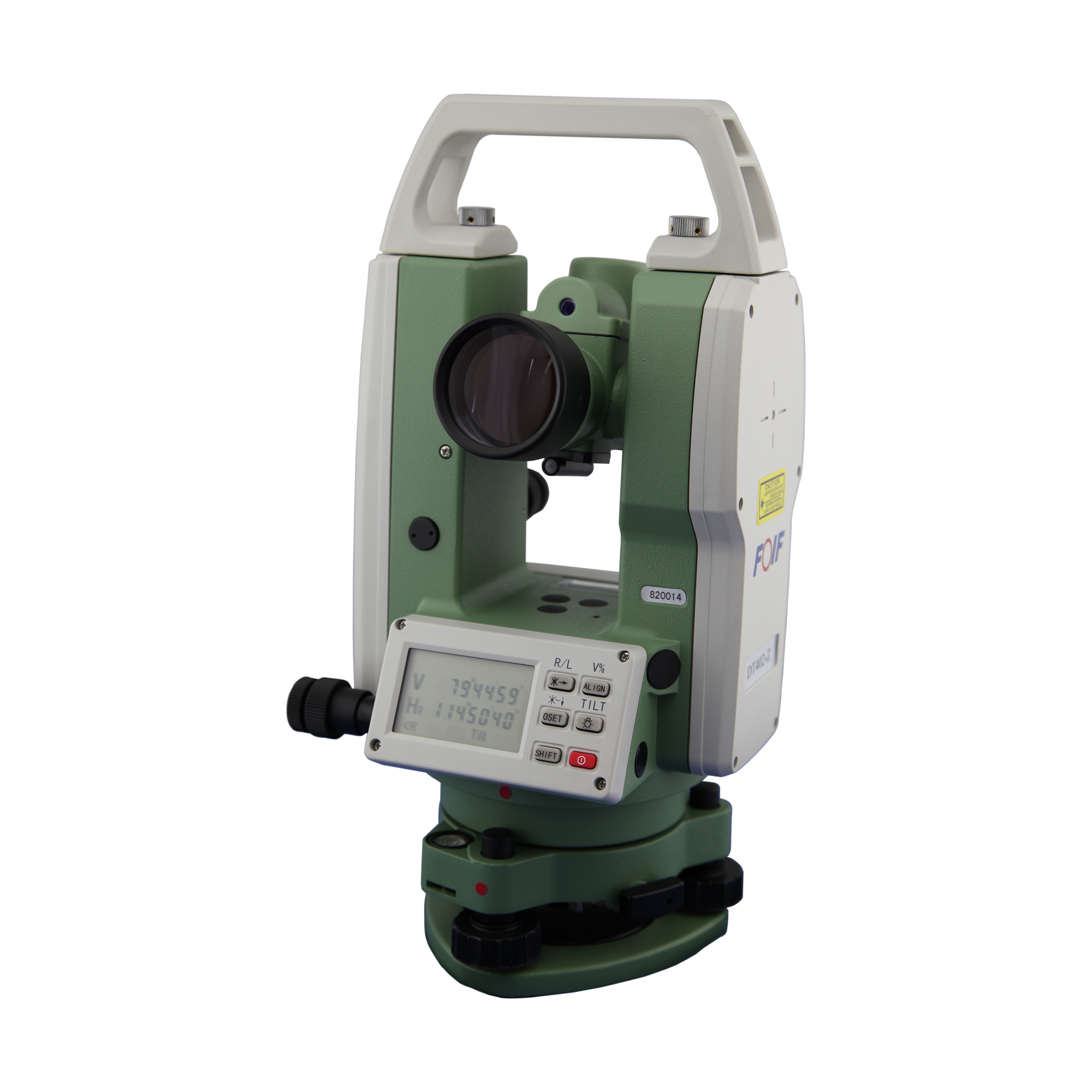

DT402-Z Auto-collimating Digital Theodolite
Effective working distance for indoor collimation reaches to 30mDirectional orientation error of auto - collimator part:5”
DT402 - Z contributes to aligning measurement and baseline precision measurement
With absolute encoder,angle measurements can be saved when power off
Compact design with wide LCD display facilitates numerical reading and operation
Minimum reading:1"/5"/10”or 0.2mgon/1mgon/2mgon
Lower power consumption,longer working time with one battery
DT402 - Z Auto - collimating Digital Theodolite
| Parameter | DT402 - Z |
|---|---|
| Telescope | |
| Image | Erect |
| Objective aperture | ∅45mm |
| Magnification | 30× |
| Field of view | 1° 30′ |
| Minimum focus | 1.0m |
| Resolution | 3.5″ |
| Angle measurement | |
| Accuracy | 2″ |
| Reading system | Absolute encoder |
| Minimum reading | 1″ / 5″ / 10″ (0.2mgon/1mgon/2mgon) |
| Auto - collimator part | |
| Collimating accuracy | 5″ |
| Working range | 30m |
| Power supply | |
| Laser pointer power supply | Share power with instrument |
| Illumination | |
| Reticle | Yes |
| LCD display backlight | Yes |
| Display | |
| Display screen | LCD on double sides, English display |
| Optical plummet(Factory optional) | |
| Image | Erect |
| Magnification | 3× |
| Accuracy | ±0.8mm/1.5m |
| Focus range | 0.5m to ∞ |
| Field of view | 4° |
| Laser plummet(Standard) | |
| Accuracy | ±1mm/1.5m |
| Laser wave length | 635nm |
| Working distance | 0.5 - 80m |
| Laser class | Class 2 (IEC60825 - 1) |
| Maximum output power | ≥0.7mw |
| Compensator | |
| Compensation range | ±3′ |
| Zero position error | 30″ |
| Vertical linearity error | 6″ |
| Compensation setting accuracy | 1″ |
| Level vial sensitivity | |
| Plate level | 30″ /2mm |
| Circular level | 8′/2mm |
| Power | |
| Battery | 6V Ni - MH battery |
| Operation time | 24 hrs |
| Charger | FDj6(110/220V) |
| Charging time | 4 hours |
| Low power buzzer alarm | Auto - power - off after 10 minutes alarm |
| Other | |
| Serial interface | RS - 232C |
| Water and dust production | IP55 (IEC60529) |
| Operation temperature | -20°C~+50°C |
| Instrument weight(battery included) | <4.5kg |
| Dimension(W×D×H) | 185220360mm |
